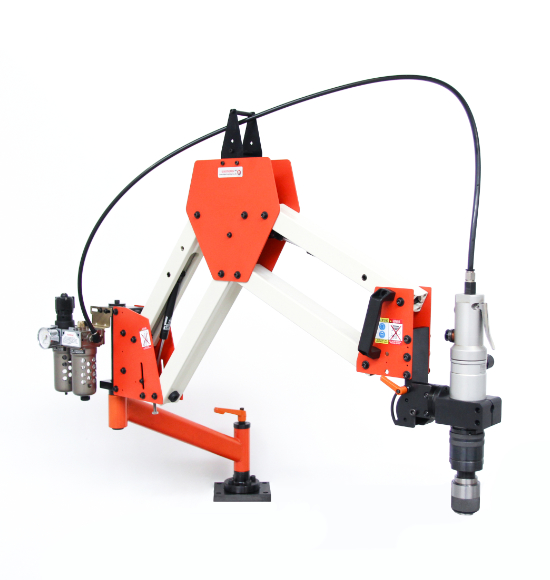

Tapping Machine R1450 20/22/27

Model R1450-20 R1450-22 R1450-27
Performance M3 - M20 M3 - M22 M3 - M27
Speed (R/min) 150/400 120/300 70/220
Air requirement 950 l/min 950 l/min 950 l/min
Pressure 6-7 bar
Range Rmax 1450 mm
Structure parallel arm Stable arm structure (hard aluminum profile 58x40)
Weight (kg) 39 39 39
Adapter mount TCS 2B TCS 2B TCS 2B
Standard accessories
  • Parallel arm
  • Pneumatic motor
  • 6 pieces safety safety clutches of your choice
  • Guide column with mounting flange
  • Radial arm (for a more flexible working range)
  • Maintenance unit
  • Pneumatic oil for initial filling
incl. 6 pieces safety clutches of your choice
Model for Size D D1 D2 L1 L3 L4 L5 Weight
TCS 1B M3-M14 1 32 19 19 71 25 21,5 25 0,15 kg
TCS 2B M5-M27 2 50 30 31 30 30 35 33 0,55 kg
Dimension
3,5x2,7 4x3 4,5x3,4 6x4,9 7x5,5 8x6,2 9x7 10x8
DIN 376 M3 M3,5 M4 M5
M6
M8
M10   M12
DIN 371 M3 M3,5 M4 M5
M6
  M8   M10
Special equipment
Multiposition head » Movable magnet »
