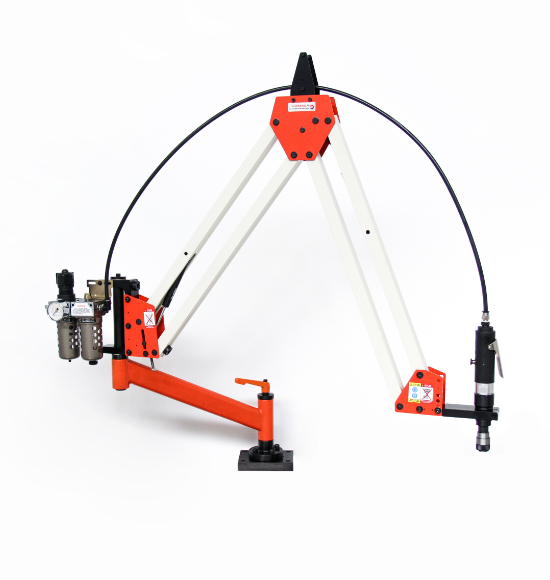

Tapping Machine R1950 08/12/16

Model R1950-08 R1950-12 R1950-16
Performance M2 - M8 M3 - M12 M3 - M16
Speed (R/min) 700 400 300
Air requirement 750 l/min 750 l/min 950 l/min
Pressure 6-7 bar
Range Rmax 1950 mm
Structure parallel arm Stable arm structure (hard aluminum profile 38x29)
Weight (kg) 23 23 27
Adapter mount TCS 1B TCS 1B TCS 2B
Standard accessories
  • Parallel arm
  • Pneumatic motor
  • 6 pieces safety safety clutches of your choice
  • Guide column with mounting flange
  • Radial arm (for a more flexible working range)
  • Maintenance unit
  • Pneumatic oil for initial filling
incl. 6 pieces safety clutches of your choice
Model for Size D D1 D2 L1 L3 L4 L5 Weight
TCS 1B M3-M14 1 32 19 19 71 25 21,5 25 0,15 kg
TCS 2B M5-M27 2 50 30 31 30 30 35 33 0,55 kg
Dimension
3,5x2,7 4x3 4,5x3,4 6x4,9 7x5,5 8x6,2 9x7 10x8
DIN 376 M3 M3,5 M4 M5
M6
M8
M10   M12
DIN 371 M3 M3,5 M4 M5
M6
  M8   M10
Special equipment
Multiposition head » Movable magnet »
