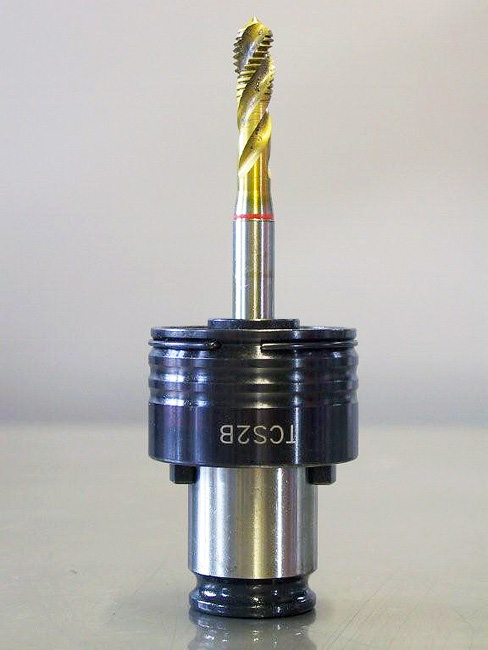

Adapter TCS-B for Safety-Clutches

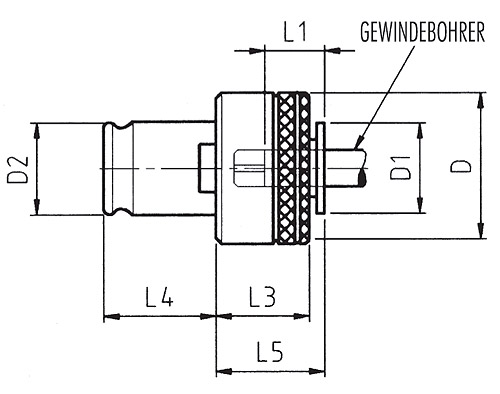

Model for Size D D1 D2 L1 L3 L4 L5 Weigth

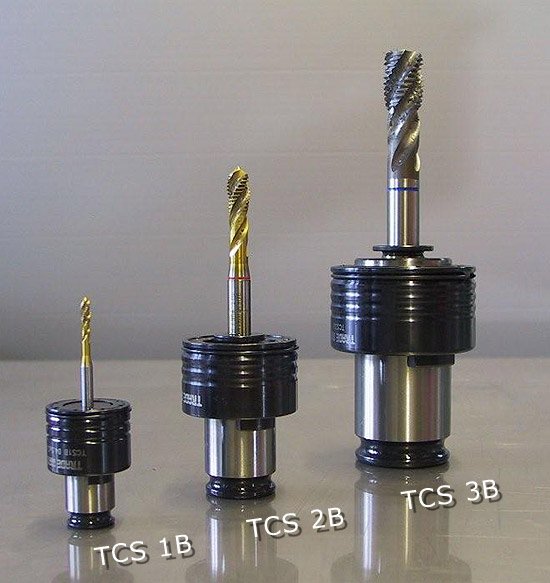

TCS 1B M3-M14 1 32 19 19 71 25 21,5 25 0,15 kg
TCS 2B M5-M27

2

50 30 31 30 30 35 33 0,55 kg
TCS 3B M16-M42 3 72 47 48 44 41 55,5 50 1,70 kg
TCS 4B M22-M50 4 95 60 60 (33) 16 63 73 3,30 kg
Dimension
3,5x2,7 4x3 4,5x3,4 6x4,9 7x5,5 8x6,2 9x7 10x8
DIN 376 M3 M3,5 M4 M5
M6
M8
M10   M12
DIN 371 M3 M3,5 M4 M5
M6
  M8   M10
Dimension
11x9 12x9 14x11 16x12 18x14,5 20x16 22x18 25x20
DIN 376 M14 M16 M18 M20 M22
M24
M27 M30 M33
Dimension
28x22 32x24 36x29 40x32 45x35 50x39 56x44
DIN 376 M36 M39 M45
M48
M52 M56
M60
M64 M68
