Vise

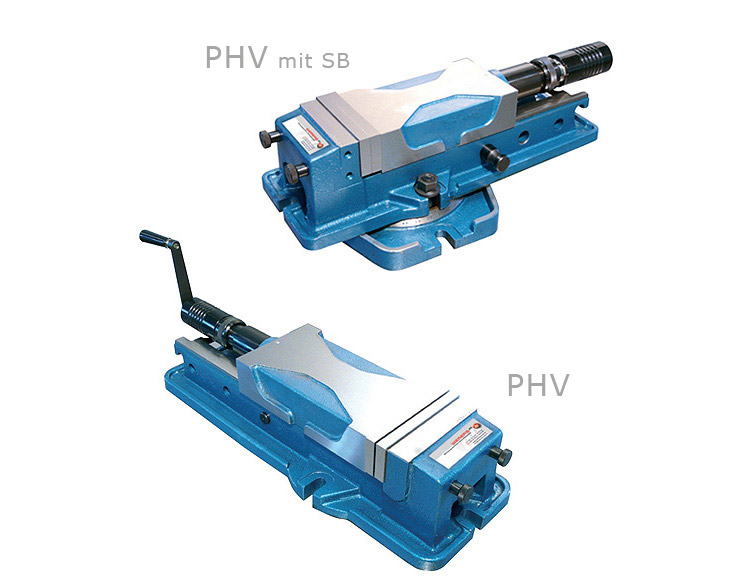

PHV

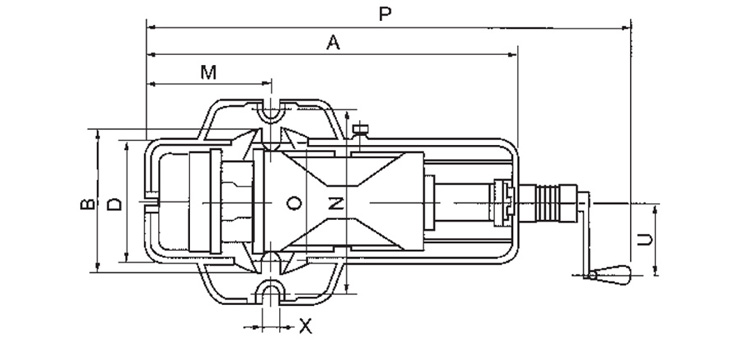

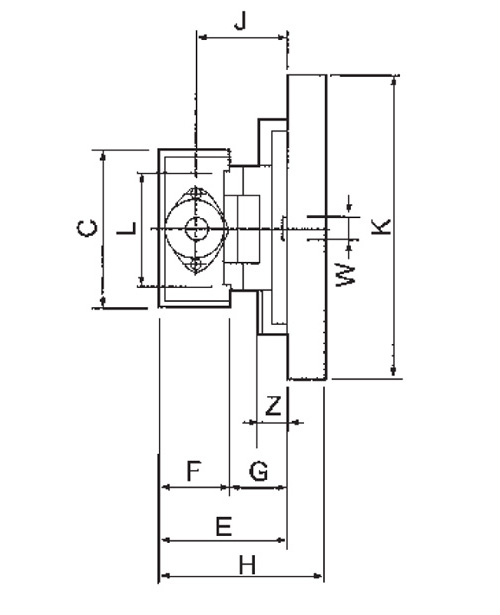

Model A B C D E F G H J K L M N O
PHV-130 505 190 130 170 127 55 72 163 95 290 106 180 250 160
PHV-160 625 240 160 205 140 58 82 179 105 340 125 208 300 196
PHV-200 700 280 200 240 163 63 100 205 125 400 165 265 360 240
PHV-250 810 320 250 290 190 80 110 238 139 460 195 320 410 270

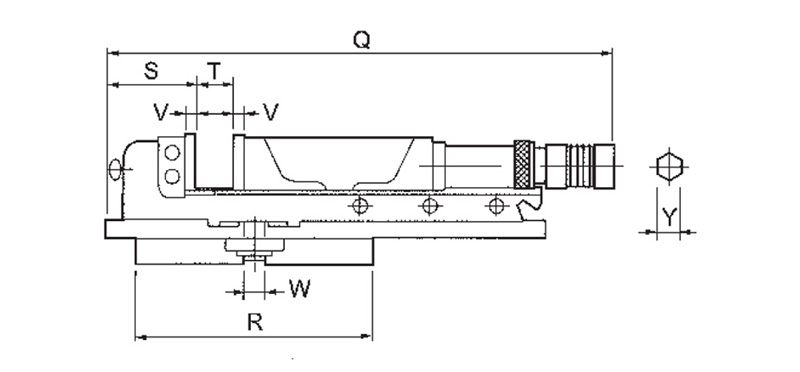

Model P Q R S T U V W X Y Z Max. Pressure N.G.
PHV-130 695/920 570/795 260 105 220 125 15 16 18 14 25 36 KN 36 kg
PHV-160 755/1055 640/940 320 125 300 125 15 16 18 14 27 41 KN 56 kg
PHV-200 830/1140 725/1035 365 150 300 125 18 18 22 14 36 62 KN 90 kg
PHV-250 920/1260 815/1155 420 180 340 125 21 18 22 14 36 72 KN 140 kg
Optional accessories
Special vise jaws and turntable

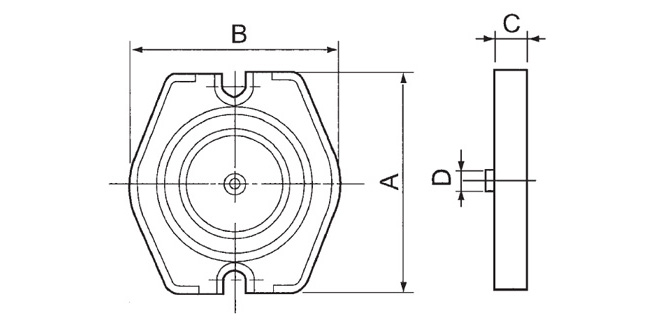

Model A B C D N.G.
SB-130 290 260 34 16 9 kg
SB-160 340 320 39 16 15 kg
SB-200 400 360 46 18 23 kg
SB-250 460 420 50 18 32 kg
